不銹鋼絲扣三通球閥帶平臺帶手柄

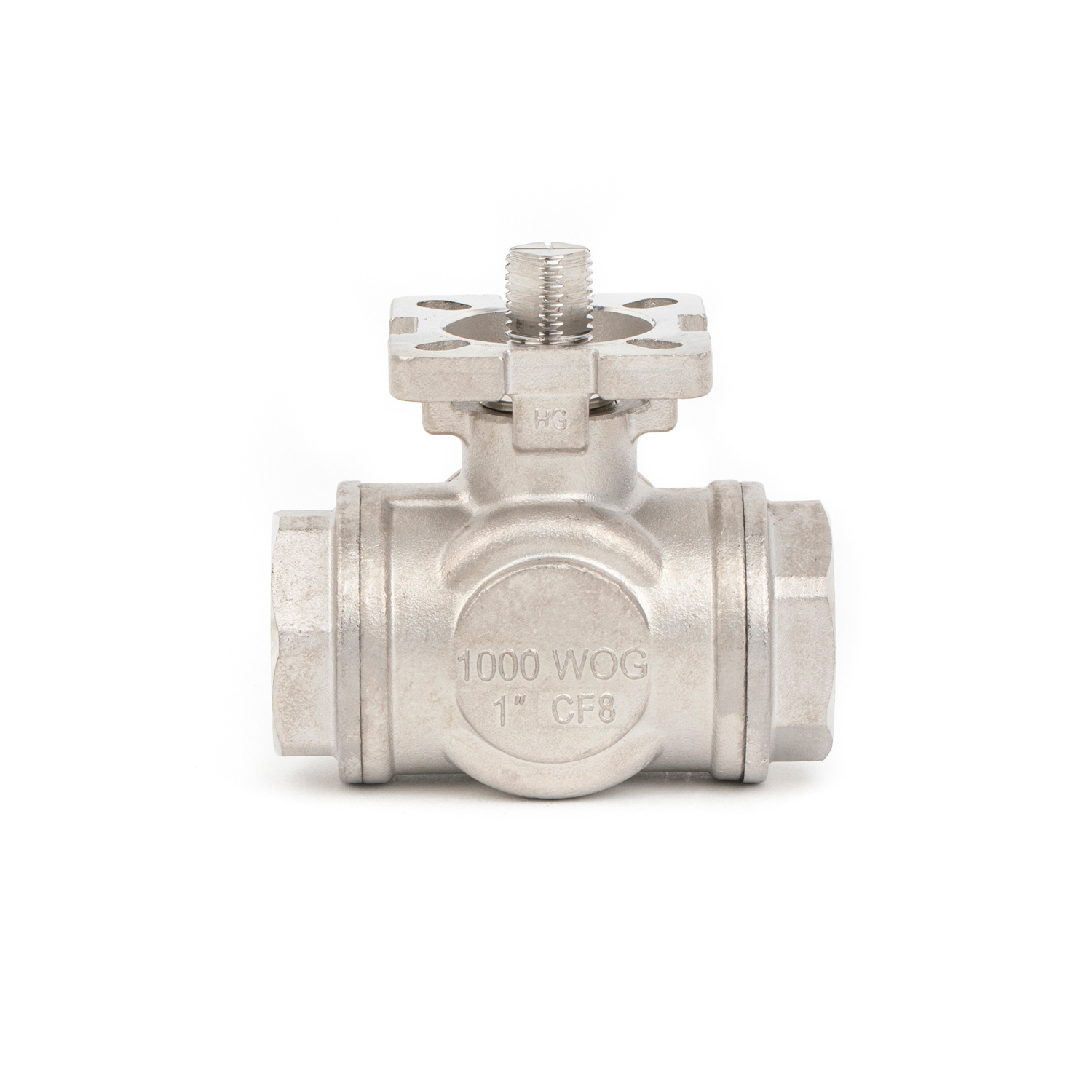

| Product Name | 3-Way Stainless Steel Threaded Ball Valve with ISO5211 |
| 1. Material | Stainless Steel 304/316/304L/316L ( CF8/CF8M/CF3/CF3M) |
| 2. Size | 1/4''~4'' ( DN6~DN100) |
| 3.Certificate | ISO9001 |
| 4. Port | Reduced/Full Port |
| 5. Working Pressure | 1000PSI (PN63/6.3Mpa) |
| 6. Connection Ends | NPT/BSP/BSPT/DIN259/DIN2999 |
| 7. Working Temp. | -20~230oC |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Seal | PTFE, RPTFE, PPL |
| 10. Locking | Option |
| 11. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 20~30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, etc. |
| 30% prepayment, 70% balance paid before shipping or against copy of BL | |
| Warranty | 18 Months after leaving factory |
| Advantage | OEM is applicable |
| Others | We also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Fire Hydrant Valve ,Booster Valve,Fully Welded Ball Valve & Y Strainer,.etc. |
